Rudder Seal 製品説明

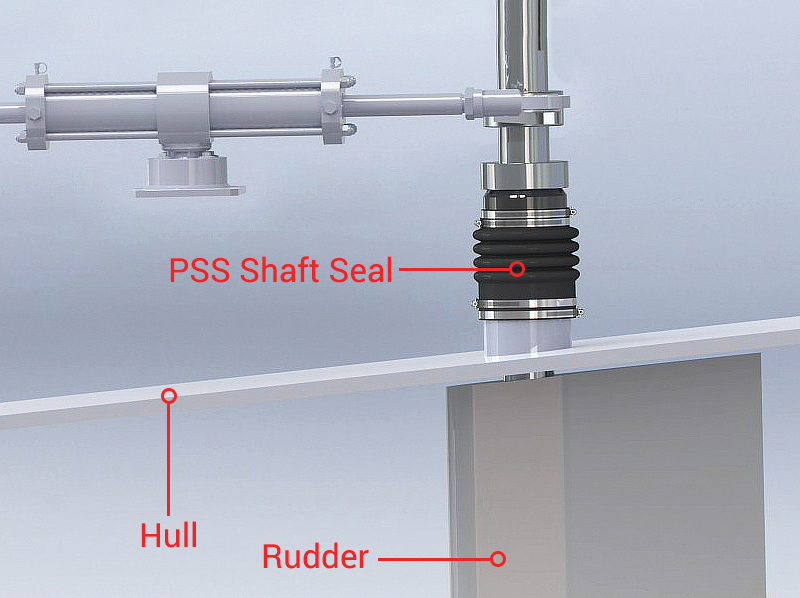

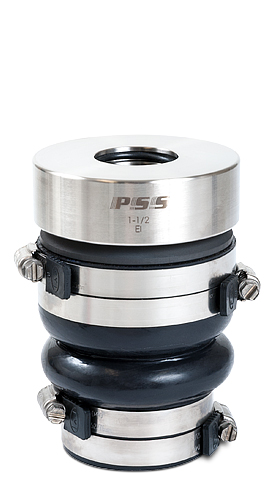

舵のシーリングシステムはボートやヨットにとって最も重要な部品の一つです。
水漏れを起こしているシーリングシステムはボートオーナーにとって不安や危険をもたらす原因となります。
P.S.S.のラダーシールはシンプルな構造で、このような問題を解決して究極の信頼性を提供してくれる製品です。
ラダーシールは3/4”〜6”（22mm 〜150mm）のシャフト直径に対応しております。
温度限界：-15℃ 〜 107℃ ( 5°F 〜 225°F )

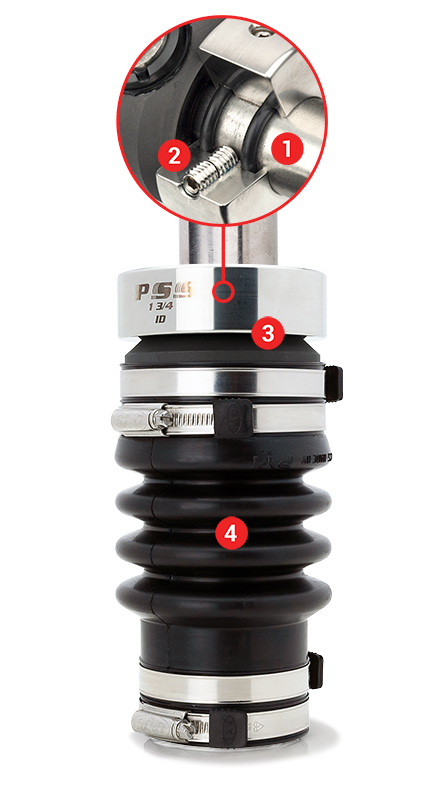

1：ダブルOリング
2：ステンレスセットスクリュー（1ヶ所に2個装着）
3：ステンレススチールローター＆カーボンフランジ
4：ニトリル製ベロー＆ステンレスホースクランプ ※クランプジャケット付属
構成部品説明
ステンレスローター
コンピューター制御のNC旋盤により高精度に加工されたSUS316素材ステンレスローターは腐食を防ぐ為に
米軍が使用している特殊表面加工の処理がされております。

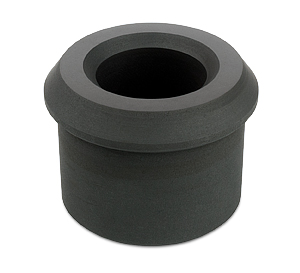

カーボンフランジ
P.S.S.で使用されているカーボン素材は高密度樹脂で炭素を高圧成形によって固めたカーボングラファイト製で
宇宙工学でも使用されているものです。
カーボンフランジの表面は 0.0011mm ( 0.000044” ) まで研磨処理が施されています。
カーボンフランジの限界温度は 260℃ ( 500°F) となっているため海水の供給が止まった状態で使用しても
リップシールやプラスチック フェイスシールのように融けることはありません。
高密度のカーボンは長時間の仕様に耐えることが出来ます。
ニトリル ベロー
二トリル素材は耐油性に非常に優れており耐久性・強度・伸縮性の三拍子揃ったベロー素材においては
最高の素材と言われております。
ニトリルゴムは汎用のゴム製品よりも耐熱性にオゾンガスや摩擦による損傷も受けにくい素材です。
温度限界：-31℃ 〜 107℃ ( -25°F 〜 225°F )
Rudder Seal 製品仕様
※シャフト及び、スタンチューブのサイズを必ず正確にご指定下さい。
《Imperial》

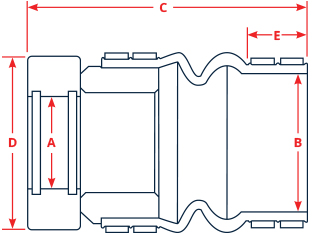

| Part # | シャフト径(A) | スタンチューブ径 (B) |
システム全長 (C) |
圧縮量 | ステンレスローター外径(D) | スタンチューブ側袖長(E) |
|---|---|---|---|---|---|---|
| 02-034-114 | 3/4" | 1-1/4" to 1-3/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-034-112 | 3/4" | 1-1/2" to 1-5/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-034-134 | 3/4" | 1-3/4" to 1-7/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-034-200 | 3/4" | 2" to 2-1/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-034-214 | 3/4" | 2-1/4" to 2-3/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-034-212 | 3/4" | 2-1/2" to 2-5/8" | 7.375"（187mm） | 3/4" | 2.375" | 1.5" |
| 02-078-114 | 7/8" | 1-1/4" to 1-3/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-078-112 | 7/8" | 1-1/2" to 1-5/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-078-134 | 7/8" | 1-3/4" to 1-7/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-078-200 | 7/8" | 2" to 2-1/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-078-214 | 7/8" | 2-1/4" to 2-3/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-078-212 | 7/8" | 2-1/2" to 2-5/8" | 7.375"（187mm） | 3/4" | 2.375" | 1.5" |
| 02-100-114 | 1" | 1-1/4" to 1-3/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-100-112 | 1" | 1-1/2" to 1-5/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-100-134 | 1" | 1-3/4" to 1-7/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-100-200 | 1" | 2" to 2-1/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-100-214 | 1" | 2-1/4" to 2-3/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-100-212 | 1" | 2-1/2" to 2-5/8" | 7.375"（187mm） | 3/4" | 2.375" | 1.5" |
| 02-118-114 | 1-1/8" | 1-1/4" to 1-3/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-118-112 | 1-1/8" | 1-5/8" to 1-3/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-118-134 | 1-1/8" | 1-3/4" to 1-7/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-118-200 | 1-1/8" | 2" to 2-1/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-118-214 | 1-1/8" | 2-1/4" to 2-3/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-118-212 | 1-1/8" | 2-1/2" to 2-5/8" | 7.375"（187mm） | 3/4" | 2.375" | 1.5" |
| 02-114-134 | 1-1/4" | 1-3/4" to 1-7/8" | 7.5"（191mm） | 3/4" | 2.875" | 1.5" |
| 02-114-200 | 1-1/4" | 2" to 2-1/8" | 7.375"（187mm） | 3/4" | 2.875" | 1.5" |
| 02-114-214 | 1-1/4" | 2-1/4" to 2-3/8" | 7.5"（191mm） | 3/4" | 2.875" | 1.5" |
| 02-114-212 | 1-1/4" | 2-1/2" to 2-5/8" | 7.375"（187mm） | 3/4" | 2.875" | 1.5" |
| 02-114-234 | 1-1/4" | 2-3/4" to 2-7/8" | 8.875"（225mm） | 3/4" | 2.875" | 2" |
| 02-114-300 | 1-1/4" | 3" to 3-1/8" | 8.875"（225mm） | 3/4" | 2.875" | 2" |
| 02-114-314 | 1-1/4" | 3-1/4" to 3-3/8" | 9.0625"（230mm） | 3/4" | 2.875" | 2" |
| 02-114-312 | 1-1/4" | 3-1/2" to 3-5/8" | 8.875"（225mm） | 3/4" | 2.875" | 2" |
| 02-138-134 | 1-3/8" | 1-3/4" to 1-7/8" | 7.5"（191mm） | 3/4" | 2.875" | 1.5" |
| 02-138-200 | 1-3/8" | 2" to 2-1/8" | 7.375"（187mm） | 3/4" | 2.875" | 1.5" |
| 02-138-214 | 1-3/8" | 2-1/4" to 2-3/8" | 7.5"（191mm） | 3/4" | 2.875" | 1.5" |
| 02-138-212 | 1-3/8" | 2-1/2" to 2-5/8" | 7.375"（187mm） | 3/4" | 2.875" | 1.5" |
| 02-138-234 | 1-3/8" | 2-3/4" to 2-7/8" | 8.875"（225mm） | 3/4" | 2.875" | 2" |
| 02-138-300 | 1-3/8" | 3" to 3-1/8" | 8.875"（225mm） | 3/4" | 2.875" | 2" |
| 02-138-314 | 1-3/8" | 3-1/4" to 3-3/8" | 9.063"（230mm） | 3/4" | 2.875" | 2" |
| 02-138-312 | 1-3/8" | 3-1/2" to 3-5/8" | 8.875"（225mm） | 3/4" | 2.875" | 2" |
| 02-112-200 | 1-1/2" | 2" to 2-1/8" | 9.155"（233mm） | 1" | 3.75" | 2" |
| 02-112-214 | 1-1/2" | 2-1/4" to 2-3/8" | 9.155"（233mm） | 1" | 3.75" | 2" |
| 02-112-212 | 1-1/2" | 2-1/2" to 2-5/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-112-234 | 1-1/2" | 2-3/4" to 2-7/8" | 9.2175"（234mm） | 1" | 3.75" | 2" |
| 02-112-300 | 1-1/2" | 3" to 3-1/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-112-314 | 1-1/2" | 3-1/4" to 3-3/8" | 9.2175"（234mm） | 1" | 3.75" | 2" |
| 02-112-312 | 1-1/2" | 3-1/2" to 3-5/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-112-334 | 1-1/2" | 3-3/4" to 3-7/8" | 9.405"（239mm） | 1" | 3.75" | 2" |
| 02-112-400 | 1-1/2" | 4" to 4-1/8" | 9.405"（239mm） | 1" | 3.75" | 2" |
| 02-134-214 | 1-3/4" | 2-1/4" to 2-3/8" | 9.155"（233mm） | 1" | 3.75" | 2" |
| 02-134-212 | 1-3/4" | 2-1/2" to 2-5/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-134-234 | 1-3/4" | 2-3/4" to 2-7/8" | 9.2175"（234mm） | 1" | 3.75" | 2" |
| 02-134-300 | 1-3/4" | 3" to 3-1/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-134-314 | 1-3/4" | 3-1/4" to 3-3/8" | 9.2175"（234mm） | 1" | 3.75" | 2" |
| 02-134-312 | 1-3/4" | 3-1/2" to 3-5/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-134-334 | 1-3/4" | 3-3/4" to 3-7/8" | 9.405"（239mm） | 1" | 3.75" | 2" |
| 02-134-400 | 1-3/4" | 4" to 4-1/8" | 9.405"（239mm） | 1" | 3.75" | 2" |
| 02-200-212 | 2" | 2-1/2" to 2-5/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-200-234 | 2" | 2-3/4" to 2-7/8" | 9.2175"（234mm） | 1" | 3.75" | 2" |
| 02-200-300 | 2" | 3" to 3-1/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-200-314 | 2" | 3-1/4" to 3-3/8" | 9.2175"（234mm） | 1" | 3.75" | 2" |
| 02-200-312 | 2" | 3-1/2" to 3-5/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-200-334 | 2" | 3-3/4" to 3-7/8" | 9.405"（239mm） | 1" | 3.75" | 2" |
| 02-200-400 | 2" | 4" to 4-1/8" | 9.405"（239mm） | 1" | 3.75" | 2" |
| 02-214-314 | 2-1/4" | 3-1/4" to 3-3/8" | 9.8125"（249mm） | 1" | 4.2" | 2" |
| 02-214-312 | 2-1/4" | 3-1/2" to 3-5/8" | 9.625"（244mm） | 1" | 4.2" | 2" |
| 02-214-334 | 2-1/4" | 3-3/4" to 3-7/8" | 9.625"（244mm） | 1" | 4.2" | 2" |
| 02-214-400 | 2-1/4" | 4" to 4-1/8" | 9.625"（244mm） | 1" | 4.2" | 2" |
| 02-214-414 | 2-1/4" | 4-1/4" to 4-3/8" | 10.25"（260mm） | 1" | 4.2" | 2.5" |
| 02-214-412 | 2-1/4" | 4-1/2" to 4-5/8" | 10.25"（260mm） | 1" | 4.2" | 2.5" |
| 02-214-434 | 2-1/4" | 4-3/4" to 4-7/8" | 10.25"（260mm） | 1" | 4.2" | 2.5" |
| 02-214-500 | 2-1/4" | 5" to 5-1/8" | 10.25"（260mm） | 1" | 4.2" | 2.5" |
| 02-212-314 | 2-1/2" | 3-1/4" to 3-3/8" | 9.625"（244mm） | 1" | 4.2" | 2" |
| 02-212-312 | 2-1/2" | 3-1/2" to 3-5/8" | 9.625"（244mm） | 1" | 4.2" | 2" |
| 02-212-334 | 2-1/2" | 3-3/4" to 3-7/8" | 9.625"（244mm） | 1" | 4.2" | 2" |
| 02-212-400 | 2-1/2" | 4" to 4-1/8" | 9.625"（244mm） | 1" | 4.2" | 2" |
| 02-212-414 | 2-1/2" | 4-1/4" to 4-3/8" | 10.25"（260mm） | 1" | 4.2" | 2.5" |
| 02-212-412 | 2-1/2" | 4-1/2" to 4-5/8" | 10.25"（260mm） | 1" | 4.2" | 2.5" |
| 02-212-434 | 2-1/2" | 4-3/4" to 4-7/8" | 10.25"（260mm） | 1" | 4.2" | 2.5" |
| 02-212-500 | 2-1/2" | 5" to 5-1/8" | 10.25"（260mm） | 1" | 4.2" | 2.5" |
| 02-234-400 | 2-3/4" | 4" to 4-1/8" | 10.3125"（262mm） | 1" | 5" | 2.5" |
| 02-234-414 | 2-3/4" | 4-1/4" to 4-3/8" | 10.3125"（262mm） | 1" | 5" | 2.5" |
| 02-234-412 | 2-3/4" | 4-1/2" to 4-5/8" | 10.125"（257mm） | 1" | 5" | 2.5" |
| 02-234-434 | 2-3/4" | 4-3/4" to 4-7/8" | 10.3125"（262mm） | 1" | 5" | 2.5" |
| 02-234-500 | 2-3/4" | 5" to 5-1/8" | 10.125"（257mm） | 1" | 5" | 2.5" |
| 02-234-514 | 2-3/4" | 5-1/4" to 5-3/8" | 10.25"（260mm） | 1" | 5" | 2.5" |
| 02-234-512 | 2-3/4" | 5-1/2" to 5-5/8" | 10.25"（260mm） | 1" | 5" | 2.5" |
| 02-234-534 | 2-3/4" | 5-3/4" to 5-7/8" | 10.25"（260mm） | 1" | 5" | 2.5" |
| 02-234-600 | 2-3/4" | 6" to 6-1/8" | 10.25"（260mm） | 1" | 5" | 2.5" |
| 02-300-400 | 3" | 4" to 4-1/8" | 10.3125"（262mm） | 1" | 5" | 2.5" |
| 02-300-414 | 3" | 4-1/4" to 4-3/8" | 10.3125"（262mm） | 1" | 5" | 2.5" |
| 02-300-412 | 3" | 4-1/2" to 4-5/8" | 10.125"（257mm） | 1" | 5" | 2.5" |
| 02-300-434 | 3" | 4-3/4" to 4-7/8" | 10.3125"（262mm） | 1" | 5" | 2.5" |
| 02-300-500 | 3" | 5" to 5-1/8" | 10.125"（257mm） | 1" | 5" | 2.5" |
| 02-300-514 | 3" | 5-1/4" to 5-3/8" | 10.25"（260mm） | 1" | 5.25" | 2.5" |
| 02-300-512 | 3" | 5-1/2" to 5-5/8" | 10.4375"（265mm） | 1" | 5" | 2.5" |
| 02-300-534 | 3" | 5-3/4" to 5-7/8" | 10.25"（260mm） | 1" | 5" | 2.5" |
| 02-300-600 | 3" | 6" to 6-1/8" | 10.25"（260mm） | 1" | 5" | 2.5" |
| 02-314-412 | 3-1/4" | 4-1/2" to 4-5/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-314-434 | 3-1/4" | 4-3/4" to 4-7/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-314-500 | 3-1/4" | 5" to 5-1/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-314-514 | 3-1/4" | 5-1/4" to 5-3/8" | 10.675"（271mm） | 1" | 6" | 2.5" |
| 02-314-512 | 3-1/4" | 5-1/2" to 5-5/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-314-534 | 3-1/4" | 5-3/4" to 5-7/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-314-600 | 3-1/4" | 6" to 6-1/8" | 10.675"（271mm） | 1" | 6" | 2.5" |
| 02-314-614 | 3-1/4" | 6-1/4" to 6-3/8" | 11.675"（297mm） | 1" | 6" | 2" |
| 02-314-612 | 3-1/4" | 6-1/2" to 6-5/8" | 11.675"（297mm） | 1" | 6" | 2" |
| 02-314-634 | 3-1/4" | 6-3/4" to 6-7/8" | 11.675"（297mm） | 1" | 6" | 2" |
| 02-314-700 | 3-1/4" | 7" to 7-1/8" | 11.675"（297mm） | 1" | 6" | 2" |
| 02-312-412 | 3-1/2" | 4-1/2" to 4-5/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-312-434 | 3-1/2" | 4-3/4" to 4-7/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-312-500 | 3-1/2" | 5" to 5-1/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-312-514 | 3-1/2" | 5-1/4" to 5-3/8" | 10.675"（271mm） | 1" | 6" | 2.5" |
| 02-312-512 | 3-1/2" | 5-1/2" to 5-5/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-312-534 | 3-1/2" | 5-3/4" to 5-7/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-312-600 | 3-1/2" | 6" to 6-1/8" | 10.675"（271mm） | 1" | 6" | 2.5" |
| 02-312-614 | 3-1/2" | 6-1/4" to 6-3/8" | 11.675"（297mm） | 1" | 6" | 2" |
| 02-312-612 | 3-1/2" | 6-1/2" to 6-5/8" | 11.675"（297mm） | 1" | 6" | 2" |
| 02-312-634 | 3-1/2" | 6-3/4" to 6-7/8" | 11.675"（297mm） | 1" | 6" | 2" |
| 02-312-700 | 3-1/2" | 7" to 7-1/8" | 11.675"（297mm） | 1" | 6" | 2" |
| 02-358-412 | 3-5/8" | 4-1/2" to 4-5/8" | 10.86"（276mm） | 1" | 6" | 2.5" |
| 02-358-434 | 3-5/8" | 4-3/4" to 4-7/8" | 10.86"（276mm） | 1" | 6" | 2.5" |
| 02-358-500 | 3-5/8" | 5" to 5-1/8" | 10.86"（276mm） | 1" | 6" | 2.5" |
| 02-358-514 | 3-5/8" | 5-1/4" to 5-3/8" | 10.86"（276mm） | 1" | 6" | 2.5" |
| 02-358-512 | 3-5/8" | 5-1/2" to 5-5/8" | 10.86"（276mm） | 1" | 6" | 2.5" |
| 02-358-534 | 3-5/8" | 5-3/4" to 5-7/8" | 10.86"（276mm） | 1" | 6" | 2.5" |
| 02-358-600 | 3-5/8" | 6" to 6-1/8" | 10.675"（271mm） | 1" | 6" | 2.5" |
| 02-358-614 | 3-5/8" | 6-1/4" to 6-3/8" | 11.675"（297mm） | 1" | 6" | 2" |
| 02-358-612 | 3-5/8" | 6-1/2" to 6-5/8" | 11.675"（297mm） | 1" | 6" | 2" |
| 02-358-634 | 3-5/8" | 6-3/4" to 6-7/8" | 11.675"（297mm） | 1" | 6" | 2" |
| 02-358-700 | 3-5/8" | 7" to 7-1/8" | 11.675"（297mm） | 1" | 6" | 2" |
| 02-334-412 | 3-3/4" | 4-1/2" to 4-5/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-334-434 | 3-3/4" | 4-3/4" to 4-7/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-334-500 | 3-3/4" | 5" to 5-1/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-334-514 | 3-3/4" | 5-1/4" to 5-3/8" | 10.675"（271mm） | 1" | 6" | 2.5" |
| 02-334-512 | 3-3/4" | 5-1/2" to 5-5/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-334-534 | 3-3/4" | 5-3/4" to 5-7/8" | 10.675"（271mm） | 1" | 6" | 2.5" |
| 02-334-600 | 3-3/4" | 6" to 6-1/8" | 10.675"（271mm） | 1" | 6" | 2.5" |
| 02-334-614 | 3-3/4" | 6-1/4" to 6-3/8" | 11.675"（297mm） | 1" | 6" | 2" |
| 02-334-612 | 3-3/4" | 6-1/2" to 6-5/8" | 11.675"（297mm） | 1" | 6" | 2" |
| 02-334-634 | 3-3/4" | 6-3/4" to 6-7/8" | 11.675"（297mm） | 1" | 6" | 2" |
| 02-334-700 | 3-3/4" | 7" to 7-1/8" | 11.675"（297mm） | 1" | 6" | 2" |
| 02-400-512 | 4" | 5-1/2" to 5-5/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-400-534 | 4" | 5-3/4" to 5-7/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-400-600 | 4" | 6" to 6-1/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-400-614 | 4" | 6-1/4" to 6-3/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-400-612 | 4" | 6-1/2" to 6-5/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-400-634 | 4" | 6-3/4" to 6-7/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-400-700 | 4" | 7" to 7-1/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-414-512 | 4-1/4" | 5-1/2" to 5-5/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-414-534 | 4-1/4" | 5-3/4" to 5-7/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-414-600 | 4-1/4" | 6" to 6-1/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-414-614 | 4-1/4" | 6-1/4" to 6-3/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-414-612 | 4-1/4" | 6-1/2" to 6-5/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-414-634 | 4-1/4" | 6-3/4" to 6-7/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-414-700 | 4-1/4" | 7" to 7-1/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-412-512 | 4-1/2" | 5-1/2" to 5-5/8" | 13.189" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-412-534 | 4-1/2" | 5-3/4" to 5-7/8" | 13.189" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-412-600 | 4-1/2" | 6" to 6-1/8" | 13.189" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-412-614 | 4-1/2" | 6-1/4" to 6-3/8" | 13.189" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-412-612 | 4-1/2" | 6-1/2" to 6-5/8" | 13.189" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-412-634 | 4-1/2" | 6-3/4" to 6-7/8" | 13.189" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-412-700 | 4-1/2" | 7" to 7-1/8" | 13.189" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-434-612 | 4-3/4" | 6-1/2" to 6-5/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-434-634 | 4-3/4" | 6-3/4" to 6-7/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-434-700 | 4-3/4" | 7" to 7-1/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-434-714 | 4-3/4" | 7-1/4" to 7-3/8" | 13.671" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-434-712 | 4-3/4" | 7-1/2" to 7-5/8" | 13.671" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-434-734 | 4-3/4" | 7-3/4" to 7-7/8" | 13.671" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-434-800 | 4-3/4" | 8" to 8-1/8" | 13.671" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-434-858 | 4-3/4" | X | 13.671" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-500-600 | 5" | 6" to 6-1/8" | 13.742" | " to 1-1/4" | 7.875" | 2.5" |
| 02-500-612 | 5" | 6-1/2" to 6-5/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-500-634 | 5" | 6-3/4" to 6-7/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-500-700 | 5" | 7" to 7-1/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-500-714 | 5" | 7-1/4" to 7-3/8" | 13.42" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-500-712 | 5" | 7-1/2" to 7-5/8" | 13.42" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-500-734 | 5" | 7-3/4" to 7-7/8" | 13.42" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-500-800 | 5" | 8" to 8-1/8" | 13.42" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-500-858 | 5" | -5/8" to 8-3/4" | 13.671" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-512-612 | 5-1/2" | 6-1/2" to 6-5/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-512-634 | 5-1/2" | 6-3/4" to 6-7/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-512-700 | 5-1/2" | 7" to 7-1/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-512-714 | 5-1/2" | 7-1/4" to 7-3/8" | 13.42" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-512-712 | 5-1/2" | 7-1/2" to 7-5/8" | 13.42" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-512-734 | 5-1/2" | -3/4" to 7-7/8" | 13.42" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-512-800 | 5-1/2" | 8" to 8-1/8" | 13.42" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-512-858 | 5-1/2" | 8-5/8" to 8-3/4" | 13.671" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-600-612 | 6" | 6-1/2" to 6-5/8" | 14.2415" | 1" to 1-1/4" | 8.875" | 2.5" |
| 02-600-634 | 6" | 6-3/4" to 6-7/8" | 14.2415" | 1" to 1-1/4" | 8.875" | 2.5" |
| 02-600-700 | 6" | 7" to 7-1/8" | 14.2415" | 1" to 1-1/4" | 8.875" | 2.5" |
| 02-600-714 | 6" | 7-1/4" to 7-3/8" | 13.9195" | 1" to 1-1/4" | 8.875" | 2.5" |
| 02-600-712 | 6" | 7-1/2" to 7-5/8" | 13.9195" | 1" to 1-1/4" | 8.875" | 2.5" |
| 02-600-734 | 6" | 7-3/4" to 7-7/8" | 13.9195" | 1" to 1-1/4" | 8.875" | 2.5" |
| 02-600-800 | 6" | 8" to 8-1/8" | 13.9195" | 1" to 1-1/4" | 8.875" | 2.5" |
| 02-600-858 | 6" | 8-5/8" to 8-3/4" | 14.2415" | 1" to 1-1/4" | 8.875" | 2.5" |
2025年1月1日 現在
《Metric》
| Part # | シャフト径(A) | スタンチューブ径 (B) |
システム全長 (C) |
圧縮量 | ステンレスローター外径(D) | スタンチューブ側袖長(E) |
|---|---|---|---|---|---|---|
| 02-20M-114 | 20mm | 1-1/4" to 1-3/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-20M-112 | 20mm | 1-1/2" to 1-5/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-20M-134 | 20mm | 1-3/4" to 1-7/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-20M-200 | 20mm | 2" to 2-1/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-20M-214 | 20mm | 2-1/4" to 2-3/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-20M-212 | 20mm | 2-1/2" to 2-5/8" | 7.38"（187mm） | 3/4" | 2.375" | 1.5" |
| 02-22M-114 | 22mm | 1-1/4" to 1-3/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-22M-112 | 22mm | 1-1/2" to 1-5/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-22M-134 | 22mm | 1-3/4" to 1-7/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-22M-200 | 22mm | 2" to 2-1/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-22M-214 | 22mm | 2-1/4" to 2-3/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-22M-212 | 22mm | 2-1/2" to 2-5/8" | 7.38"（187mm） | 3/4" | 2.375" | 1.5" |
| 02-25M-114 | 25mm | 1-1/4" to 1-3/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-25M-112 | 25mm | 1-1/2" to 1-5/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-25M-134 | 25mm | 1-3/4" to 1-7/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-25M-200 | 25mm | 2" to 2-1/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-25M-214 | 25mm | 2-1/4" to 2-3/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-25M-212 | 25mm | 2-1/2" to 2-5/8" | 7.375"（187mm） | 3/4" | 2.375" | 1.5" |
| 02-28M-114 | 28mm | 1-1/4" to 1-3/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-28M-112 | 28mm | 1-1/2" to 1-5/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-28M-134 | 28mm | 1-3/4" to 1-7/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-28M-200 | 28mm | 2" to 2-1/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-28M-214 | 28mm | 2-1/4" to 2-3/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-28M-212 | 28mm | 2-1/2" to 2-5/8" | 7.375"（187mm） | 3/4" | 2.375" | 1.5" |
| 02-30M-114 | 30mm | 1-1/4" to 1-3/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-30M-112 | 30mm | 1-1/2" to 1-5/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-30M-134 | 30mm | 1-3/4" to 1-7/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-30M-200 | 30mm | 2" to 2-1/8" | 6.875"（175mm） | 3/4" | 2.375" | 1.5" |
| 02-30M-214 | 30mm | 2-1/4" to 2-3/8" | 6.75"（171mm） | 3/4" | 2.375" | 1.5" |
| 02-30M-212 | 30mm | 2-1/2" to 2-5/8" | 7.375"（187mm） | 3/4" | 2.375" | 1.5" |
| 02-32M-134 | 32mm | 1-3/4" to 1-7/8" | 7.5"（191mm） | 3/4" | 2.875" | 1.5" |
| 02-32M-200 | 32mm | 2" to 2-1/8" | 7.375"（187mm） | 3/4" | 2.875" | 1.5" |
| 02-32M-214 | 32mm | 2-1/4" to 2-3/8" | 7.5"（191mm） | 3/4" | 2.875" | 1.5" |
| 02-32M-212 | 32mm | 2-1/2" to 2-5/8" | 7.375"（187mm） | 3/4" | 2.875" | 1.5" |
| 02-32M-234 | 32mm | 2-3/4" to 2-7/8" | 8.875"（225mm） | 3/4" | 2.875" | 2" |
| 02-32M-300 | 32mm | 3" to 3-1/8" | 8.875"（225mm） | 3/4" | 2.875" | 2" |
| 02-32M-314 | 32mm | 3-1/4" to 3-3/8" | 9.06"（230mm） | 3/4" | 2.875" | 2" |
| 02-32M-312 | 32mm | 3-1/2" to 3-5/8" | 8.88"（226mm） | 3/4" | 2.875" | 2" |
| 02-35M-134 | 35mm | 1-3/4" to 1-7/8" | 7.5"（191mm） | 3/4" | 2.875" | 1.5" |
| 02-35M-200 | 35mm | 2" to 2-1/8" | 7.375"（187mm） | 3/4" | 2.875" | 1.5" |
| 02-35M-214 | 35mm | 2-1/4" to 2-3/8" | 7.5"（191mm） | 3/4" | 2.875" | 1.5" |
| 02-35M-212 | 35mm | 2-1/2" to 2-5/8" | 7.375"（187mm） | 3/4" | 2.875" | 1.5" |
| 02-35M-234 | 35mm | 2-3/4" to 2-7/8" | 8.875"（225mm） | 3/4" | 2.875" | 2" |
| 02-35M-300 | 35mm | 3" to 3-1/8" | 8.875"（225mm） | 3/4" | 2.875" | 2" |
| 02-35M-314 | 35mm | 3-1/4" to 3-3/8" | 9.06"（230mm） | 3/4" | 2.875" | 2" |
| 02-35M-312 | 35mm | 3-1/2" to 3-5/8" | 8.88"（226mm） | 3/4" | 2.875" | 2" |
| 02-38M-200 | 38mm | 2" to 2-1/8" | 9.155"（233mm） | 1" | 3.75" | 2" |
| 02-38M-214 | 38mm | 2-1/4" to 2-1/8" | 9.155"（233mm） | 1" | 3.75" | 2" |
| 02-38M-212 | 38mm | 2-1/2" to 2-5/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-38M-234 | 38mm | 2-3/4" to 2-7/8" | 9.2175"（234mm） | 1" | 3.75" | 2" |
| 02-38M-300 | 38mm | 3" to 3-1/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-38M-314 | 38mm | 3-1/4" to 3-3/8" | 9.2175"（234mm） | 1" | 3.75" | 2" |
| 02-38M-312 | 38mm | 3-1/2" to 3-5/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-38M-334 | 38mm | 3-3/4" to 3-7/8" | 9.405"（239mm） | 1" | 3.75" | 2" |
| 02-38M-400 | 38mm | 4" to 4-1/8" | 9.405"（239mm） | 1" | 3.75" | 2" |
| 02-40M-200 | 40mm | 2" to 2-1/8" | 9.155"（233mm） | 1" | 3.75" | 2" |
| 02-40M-214 | 40mm | 2-1/4" to 2-3/8" | 9.155"（233mm） | 1" | 3.75" | 2" |
| 02-40M-212 | 40mm | 2-1/2" to 2-5/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-40M-234 | 40mm | 2-3/4" to 2-7/8" | 9.2175"（234mm） | 1" | 3.75" | 2" |
| 02-40M-300 | 40mm | 3" to 3-1/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-40M-314 | 40mm | 3-1/4" to 3-3/8" | 9.2175"（234mm） | 1" | 3.75" | 2" |
| 02-40M-312 | 40mm | 3-1/2" to 3-5/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-40M-334 | 40mm | 3-3/4" to 3-7/8" | 9.405"（239mm） | 1" | 3.75" | 2" |
| 02-40M-400 | 40mm | 4" to 4-1/8" | 9.405"（239mm） | 1" | 3.75" | 2" |
| 02-45M-214 | 45mm | 2-1/4" to 2-3/8" | 9.155"（233mm） | 1" | 3.75" | 2" |
| 02-45M-212 | 45mm | 2-1/2" to 2-5/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-45M-234 | 45mm | 2-3/4" to 2-7/8" | 9.2175"（234mm） | 1" | 3.75" | 2" |
| 02-45M-300 | 45mm | 3" to 3-1/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-45M-314 | 45mm | 3-1/4" to 3-3/8" | 9.2175"（234mm） | 1" | 3.75" | 2" |
| 02-45M-312 | 45mm | 3-1/2" to 3-5/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-45M-334 | 45mm | 3-3/4" to 3-7/8" | 9.405"（239mm） | 1" | 3.75" | 2" |
| 02-45M-400 | 45mm | 4" to 4-1/8" | 9.405"（239mm） | 1" | 3.75" | 2" |
| 02-50M-212 | 50mm | 4" to 4-1/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-50M-234 | 50mm | 2-3/4" to 2-7/8" | 9.2175"（234mm） | 1" | 3.75" | 2" |
| 02-50M-300 | 50mm | 3" to 3-1/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-50M-314 | 50mm | 3-1/4" to 3-3/8" | 9.2175"（234mm） | 1" | 3.75" | 2" |
| 02-50M-312 | 50mm | 3-1/2" to 3-5/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-50M-334 | 50mm | 3-3/4" to 3-7/8" | 9.405"（239mm） | 1" | 3.75" | 2" |
| 02-50M-400 | 50mm | 4" to 4-1/8" | 9.405"（239mm） | 1" | 3.75" | 2" |
| 02-55M-212 | 55mm | 2-1/2" to 2-5/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-55M-234 | 55mm | 2-3/4" to 2-7/8" | 9.2175"（234mm） | 1" | 3.75" | 2" |
| 02-55M-300 | 55mm | 3" to 3-1/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-55M-314 | 55mm | 3-1/4" to 3-3/8" | 9.2175"（234mm） | 1" | 3.75" | 2" |
| 02-55M-312 | 55mm | 3-1/2" to 3-5/8" | 9.03"（229mm） | 1" | 3.75" | 2" |
| 02-55M-334 | 55mm | 3-3/4" to 3-7/8" | 9.405"（239mm） | 1" | 3.75" | 2" |
| 02-55M-400 | 55mm | 4" to 3-1/8" | 9.405"（239mm） | 1" | 3.75" | 2" |
| 02-60M-314 | 60mm | 3-1/4" to 3-3/8" | 9.625"（244mm） | 1" | 4.2" | 2" |
| 02-60M-312 | 60mm | 3-1/2" to 3-5/8" | 9.625"（244mm） | 1" | 4.2" | 2" |
| 02-60M-334 | 60mm | 3-3/4" to 3-7/8" | 9.625"（244mm） | 1" | 4.2" | 2" |
| 02-60M-400 | 60mm | 4" to 4-1/8" | 9.625"（244mm） | 1" | 4.2" | 2" |
| 02-60M-414 | 60mm | 4-1/4" to 4-3/8" | 10.25"（260mm） | 1" | 4.2" | 2.5" |
| 02-60M-412 | 60mm | 4-1/2" to 4-5/8" | 10.25"（260mm） | 1" | 4.2" | 2.5" |
| 02-60M-434 | 60mm | 4-3/4" to 4-7/8" | 10.25"（260mm） | 1" | 4.2" | 2.5" |
| 02-60M-500 | 60mm | 5" to 5-1/8" | 10.25"（260mm） | 1" | 4.2" | 2.5" |
| 02-65M-314 | 65mm | 3-1/4" to 3-3/8" | 9.625"（244mm） | 1" | 4.2" | 2" |
| 02-65M-312 | 65mm | 3-1/2" to 3-5/8" | 9.625"（244mm） | 1" | 4.2" | 2" |
| 02-65M-334 | 65mm | 3-3/4" to 3-7/8" | 9.625"（244mm） | 1" | 4.2" | 2" |
| 02-65M-400 | 65mm | 4" to 4-1/8" | 9.625"（244mm） | 1" | 4.2" | 2" |
| 02-65M-414 | 65mm | 4-1/4" to 4-3/8" | 10.25"（260mm） | 1" | 4.2" | 2.5" |
| 02-65M-412 | 65mm | 4-1/2" to 4-5/8" | 10.25"（260mm） | 1" | 4.2" | 2.5" |
| 02-65M-434 | 65mm | 4-3/4" to 4-7/8" | 10.25"（260mm） | 1" | 4.2" | 2.5" |
| 02-65M-500 | 65mm | 5" to 5-1/8" | 10.25"（260mm） | 1" | 4.2" | 2.5" |
| 02-70M-400 | 70mm | 4" to 4-1/8" | 10.3125"（262mm） | 1" | 5" | 2.5" |
| 02-70M-414 | 70mm | 4-1/4" to 4-3/8" | 10.3125"（262mm） | 1" | 5" | 2.5" |
| 02-70M-412 | 70mm | 4-1/2" to 4-5/8" | 10.125"（257mm） | 1" | 5" | 2.5" |
| 02-70M-434 | 70mm | 4-3/4" to 4-7/8" | 10.3125"（262mm） | 1" | 5" | 2.5" |
| 02-70M-500 | 70mm | 5" to 5-1/8" | 10.125"（257mm） | 1" | 5" | 2.5" |
| 02-70M-514 | 70mm | 5-1/4" to 5-3/8" | 10.25"（260mm） | 1" | 5" | 2.5" |
| 02-70M-512 | 70mm | 5-1/2" to 5-5/8" | 10.25"（260mm） | 1" | 5" | 2.5" |
| 02-70M-534 | 70mm | 5-3/4" to 5-7/8" | 10.25"（260mm） | 1" | 5" | 2.5" |
| 02-70M-600 | 70mm | 6" to 6-1/8" | 10.25"（260mm） | 1" | 5" | 2.5" |
| 02-75M-400 | 75mm | 4" to 4-1/8" | 10.3125"（262mm） | 1" | 5" | 2.5" |
| 02-75M-414 | 75mm | 4-1/4" to 4-3/8" | 10.3125"（262mm） | 1" | 5" | 2.5" |
| 02-75M-412 | 75mm | 4-1/2" to 4-5/8" | 10.125"（257mm） | 1" | 5" | 2.5" |
| 02-75M-434 | 75mm | 4-3/4" to 4-7/8" | 10.3125"（262mm） | 1" | 5" | 2.5" |
| 02-75M-500 | 75mm | 5" to 5-1/8" | 10.125"（257mm） | 1" | 5" | 2.5" |
| 02-75M-514 | 75mm | 5-1/4" to 5-3/8" | 10.25"（260mm） | 1" | 5" | 2.5" |
| 02-75M-512 | 75mm | 5-1/2" to 5-5/8" | 10.4375"（265mm） | 1" | 5" | 2.5" |
| 02-75M-534 | 75mm | 5-3/4" to 5-7/8" | 10.25"（260mm） | 1" | 5" | 2.5" |
| 02-75M-600 | 80mm | 6" to 6-1/8" | 10.25"（260mm） | 1" | 5" | 2.5" |
| 02-80M-400 | 80mm | 4" to 4-1/8" | 10.3125"（262mm） | 1" | 5" | 2.5" |
| 02-80M-414 | 80mm | 4-1/4" to 4-3/8" | 10.3125"（262mm） | 1" | 5" | 2.5" |
| 02-80M-434 | 80mm | 4-3/4" to 4-7/8" | 10.3125"（262mm） | 1" | 5" | 2.5" |
| 02-80M-500 | 80mm | 5" to 5-1/8" | 10.125"（257mm） | 1" | 5" | 2.5" |
| 02-80M-514 | 80mm | 5-1/4" to 5-3/8" | 10.25"（260mm） | 1" | 5" | 2.5" |
| 02-80M-512 | 80mm | 5-1/2" to 5-5/8" | 10.4375"（265mm） | 1" | 5" | 2.5" |
| 02-80M-534 | 80mm | 5-3/4" to 5-7/8" | 10.25"（260mm） | 1" | 5" | 2.5" |
| 02-80M-600 | 80mm | 6" to 6-1/8" | 10.25"（260mm） | 1" | 5" | 2.5" |
| 02-85M-415 | 85mm | 4-1/2" to 4-5/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-85M-434 | 85mm | 4-3/4" to 4-7/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-85M-500 | 85mm | 5" to 5-1/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-85M-514 | 85mm | 5-1/4" to 5-3/8" | 10.675"（271mm） | 1" | 6" | 2.5" |
| 02-85M-512 | 85mm | 5-1/2" to 5-5/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-85M-534 | 85mm | 5-3/4" to 5-7/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-85M-600 | 85mm | 6" to 6-1/8" | 10.675"（271mm） | 1" | 6" | 2.5" |
| 02-90M-412 | 90mm | 4-1/2" to 4-5/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-90M-434 | 90mm | 4-3/4" to 4-7/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-90M-500 | 90mm | 5" to 5-1/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-90M-514 | 90mm | 5-1/4" to 5-3/8" | 10.675"（271mm） | 1" | 6" | 2.5" |
| 02-90M-512 | 90mm | 5-1/2" to 5-5/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-90M-534 | 90mm | 5-3/4" to 5-7/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-90M-600 | 90mm | 6" to 6-1/8" | 10.675"（271mm） | 1" | 6" | 2.5" |
| 02-95M-412 | 95mm | 4-1/2" to 4-5/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-95M-434 | 95mm | 4-3/4" to 4-7/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-95M-500 | 95mm | 5-1/8" to 5-1/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-95M-514 | 95mm | 5-1/4" to 5-3/8" | 10.675"（271mm） | 1" | 6" | 2.5" |
| 02-95M-512 | 95mm | 5-1/2" to 5-5/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-95M-534 | 95mm | 5-3/4" to 5-7/8" | 10.8625"（276mm） | 1" | 6" | 2.5" |
| 02-95M-600 | 95mm | 6" to 6-1/8" | 10.675"（271mm） | 1" | 6" | 2.5" |
| 02-100M-512 | 100mm | 5-1/2" to 5-5/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-100M-534 | 100mm | 5-3/4" to 5-7/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-100M-600 | 100mm | 6" to 6-1/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-100M-614 | 100mm | 6-1/4" to 6-3/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-100M-612 | 100mm | 6-1/2" to 6-5/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5 |
| 02-100M-634 | 100mm | 6-3/4" to 6-7/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-100M-700 | 100mm | 7" to 7-1/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-110M-512 | 110mm | 5-1/2" to 5-5/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-110M-534 | 110mm | 5-3/4" to 5-7/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-110M-600 | 110mm | 6" to 6-1/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-110M-614 | 110mm | 6-1/4" to 6-3/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-110M-612 | 110mm | 6-1/2" to 6-5/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-110M-634 | 110mm | 6-3/4" to 6-7/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-110M-700 | 110mm | 7" to 7-1/8" | 13.189" | 1" to 1-1/4" | 7" | 2.5" |
| 02-115M-512 | 115mm | 5-1/2" to 5-5/8" | 13.314" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-115M-534 | 115mm | 5-3/4" to 5-7/8" | 13.314 | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-115M-600 | 115mm | 6" to 6-1/8" | 13.314" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-115M-614 | 115mm | 6-1/4" to 6-3/8" | 13.314" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-115M-612 | 115mm | 6-1/2" to 6-5/8" | 13.314" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-115M-614 | 115mm | 6-3/4" to 6-7/8" | 13.314" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-115M-700 | 115mm | 7" to 7-2/8 | 13.314" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-120M-612 | 120mm | 6-1/2" to 6-5/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-120M-634 | 120mm | 6-3/4" to 6-7/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-120M-700 | 120mm | 7" to 7-1/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-120M-714 | 120mm | 7-1/4" to 7-3/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-120M-712 | 120mm | 7-1/2" to 7-5/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-120M-734 | 120mm | 7-3/4" to 7-7/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-120M-800 | 120mm | 8" to 8-1/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-120M-858 | 120mm | 8-5/8" to 8-3/4" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-130M-612 | 130mm | 6-1/2" to 6-5/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-130M-634 | 130mm | 6-3/4" to 6-7/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-130M-700 | 130mm | 7" to 7-1/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-130M-714 | 130mm | 7-1/4" to 7-3/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-130M-712 | 130mm | 7-1/2" to 7-5/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-130M-734 | 130mm | 7-3/4" to 7-7/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-130M-800 | 130mm | 8" to 8-1/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-130M-858 | 130mm | 8-5/8" to 8-3/4" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-140M-612 | 140mm | 6-1/2" to 6-5/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-140M-634 | 140mm | 6-3/4" to 6-7/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-140M-700 | 140mm | 7" to 7-1/8" | 13.742" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-140M-714 | 140mm | 7-1/4" to 7-3/8" | 13.42" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-140M-712 | 140mm | 7-1/2" to 7-5/8" | 13.42" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-140M-734 | 140mm | 7-3/4" to 7-7/8" | 13.42" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-140M-800 | 140mm | 8" to 8-1/8" | 13.42" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-140M-858 | 140mm | 8-5/8" to 8-3/4" | 13.671" | 1" to 1-1/4" | 7.875" | 2.5" |
| 02-150M-612 | 150mm | 6-1/2" to 6-5/8" | 14.2415" | 1" to 1-1/4" | 8.875" | 2.5" |
| 02-150M-634 | 150mm | 6-3/4" to 6-7/8" | 14.2415" | 1" to 1-1/4" | 8.875" | 2.5" |
| 02-150M-700 | 150mm | 7" to 7-1/8" | 14.2415" | 1" to 1-1/4" | 8.875" | 2.5" |
| 02-150M-714 | 150mm | 7-1/4" to 7-3/8" | 13.9195" | 1" to 1-1/4" | 8.875" | 2.5" |
| 02-150M-712 | 150mm | 7-1/2" to 7-5/8" | 13.9195" | 1" to 1-1/4" | 8.875" | 2.5" |
| 02-150M-734 | 150mm | 7-3/4" to 7-7/8" | 13.9195" | 1" to 1-1/4" | 8.875" | 2.5" |
| 02-150M-800 | 150mm | 8" to 8-1/8" | 13.9195" | 1" to 1-1/4" | 8.875" | 2.5" |
| 02-150M-858 | 150mm | 8-5/8" to 8-3/4" | 14.2415" | 1" to 1-1/4" | 8.875" | 2.5" |
2025年1月1日 現在
Rudder Seal 価格表
| 舵軸の直径 | ラダーチューブの外径 | 圧縮後の全長 | ｽﾃﾝﾚｽﾛｰﾀｰの外径 | 価格（税別） |
|---|---|---|---|---|
| 3/4", 7/8" 20mm, 22mm |
1-3/4", 2", 2-1/4" 44mm, 51mm, 57mm, |
5-1/8"〜5-1/4" 130mm〜133mm |
2.375" 60.33mm |
￥98,500 |
| 1" 25mm |
2", 2-1/4", 2-1/2" 51mm, 57mm, 63mm |
5-1/8"〜5-1/4" 130mm〜133mm |
2.375" 60.33mm |
￥98,500 |
| 1-1/8" 28mm |
2", 2-1/4", 2-1/2" 51mm, 57mm, 63mm |
5-1/8"〜5-1/4" 130mm〜133mm |
2.375" 60.33mm |
￥98,500 |
| 1-1/4" 30mm, 32mm |
2", 2-1/4", 2-1/2" 51mm, 57mm, 63mm |
5-1/8"〜5-1/4" 130mm〜133mm |
2.875" 73.03mm |
￥115,500 |
| 1-3/8" 35mm |
2", 2-1/4", 2-1/2" 51mm, 57mm, 63mm |
5-1/8"〜5-1/4" 130mm〜133mm |
2.875" 73.03mm |
￥115,500 |
| 1-1/2" 38mm |
2", 2-1/4", 2-1/2" 51mm, 57mm, 63mm |
5-1/8"〜5-1/4" 130mm〜133mm |
3.75" 95.25mm |
￥151,000 |
| 1-9/16" 40mm |
2", 2-1/4", 2-1/2" 51mm, 57mm, 63mm |
5-1/8"〜5-1/4" 130mm〜133mm |
3.75" 95.25mm |
￥151,000 |
| 1-3/4" 45mm |
2", 2-1/4", 2-1/2" 51mm, 57mm, 63mm |
5-1/8"〜5-1/4" 130mm〜133mm |
3.75" 95.25mm |
￥165,000 |
| 2" 50mm, 55mm |
2-1/4", 2-1/2" 57mm, 63mm |
5-1/8"〜5-1/4" 130mm〜133mm |
3.75" 95.25mm |
￥198,000 |
2025年1月1日 現在
※ご注文の際は上記の表からシャフトの直径とチューブの外径をご指定下さい。
シャフトの直径はミリサイズもしくはインチサイズのどちらかをご確認下さい。
※上記以外のサイズの場合はお問い合わせ下さい。
※予告なく製品の価格、仕様などを変更する場合がございます。
